GitHub Workflow Dispatcher

GitHub Workflow Dispatcher allows you to trigger Github workflows to deploy software or infrastructure.

1

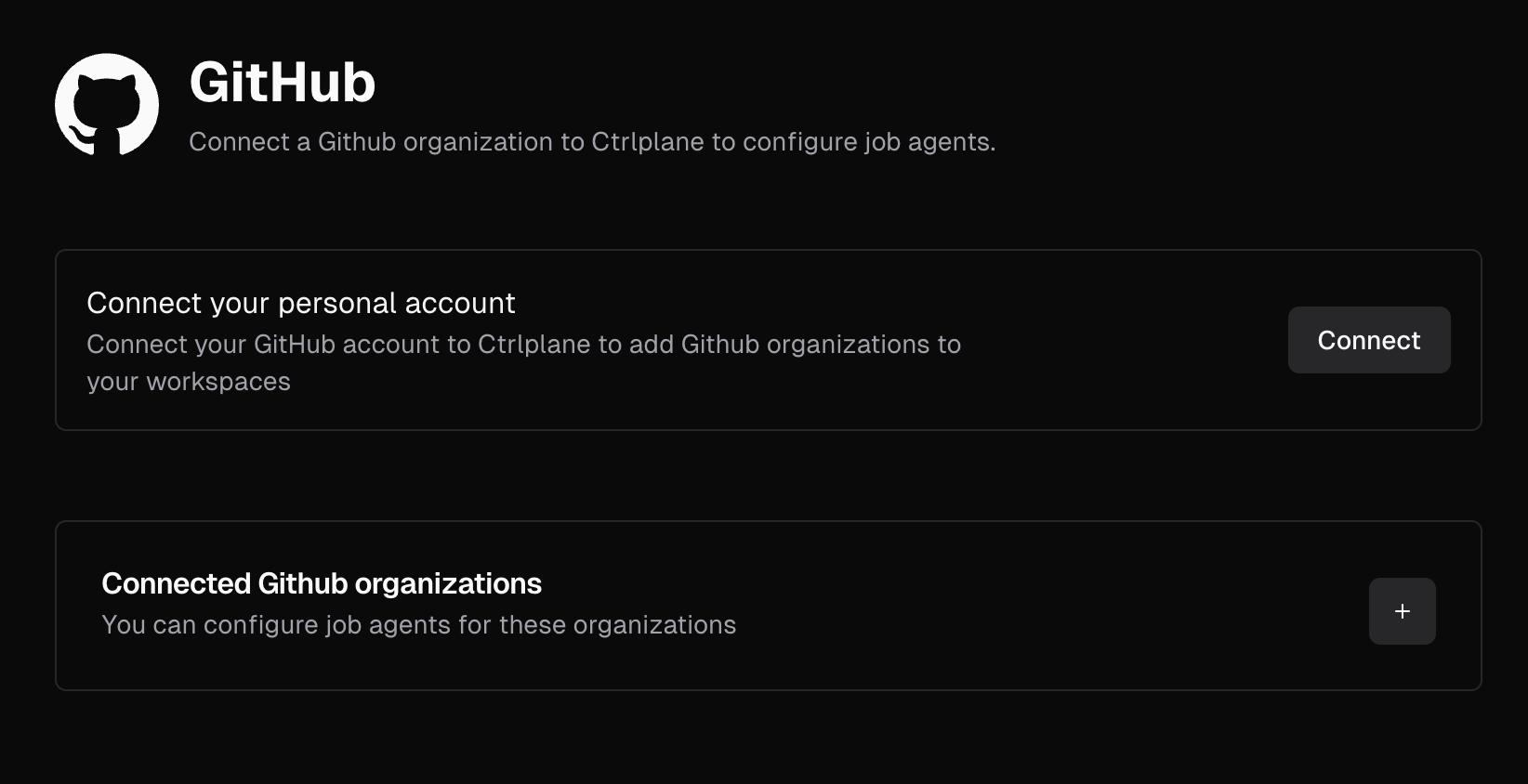

Enable GitHub Integration

Enable the GitHub integration in your Ctrlplane workspace settings and invite the Github bot to your organization.

Workspace Settings > Integrations > GitHub

2

Creating a GitHub Workflow

Create a new workflow in your repository.

name: Receiving Workflow
run-name:
  Receiving Workflow [${{ inputs.job_id }}]

on:
  workflow_dispatch:
    inputs:
      job_id:
        description: "Distinct ID"
        required: false

Due to limitations of the GitHub API, workflows do not return the run ID. In order for Ctrlplane to get the ID, it generates a random one that is passed into the pipeline and is expected to be added to the Run name. This can be done by adding:

3

Retrieving Job Inputs

Next, configure the action to retrieve job inputs from Ctrlplane using the get-job-inputs action. You will need to provide the base URL of your Ctrl Plane instance, the job_id (input), and an API key stored in your GitHub secrets.

jobs:
  deploy-app:
    runs-on: ubuntu-latest

    steps:
      - name: Checkout repository
        uses: actions/checkout@v4

      - id: ctrlplane
        uses: ctrlplanedev/ctrlplane/github/get-job-inputs@main
        with:
          base_url: https://ctrlplane.dev
          job_id: ${{ inputs.job_id }}
          api_key: ${{ secrets.CTRLPLANE_API_KEY }}
          required_outputs: |
            release_version
            resource_config_name

      # ... deploy your app to the resource

​
Commit Release Provider

Its commone to create a release for every commit to a repository. Here is an example github aciton that creates a release for a given commit.

name: Create Release

on:
  push:

jobs:
  release:
    runs-on: ubuntu-latest
    steps:
      - name: Checkout
        uses: actions/checkout@v4

      - name: Install Ctrlplane CLI
        uses: ctrlplanedev/cli@main
        with:
          api_key: ${{ secrets.CTRLPLANE_API_KEY }}
          version: v0.1.8

      - name: Create Release
        run: |
          ctrlc api upsert release \
            --version ${{ github.sha }} \
            --name ${{ github.sha }} \
            --deployment 00000000-0000-0000-0000-000000000000 \
            --metadata branch=${{ github.ref }} \
            --metadata commit=${{ github.sha }} \
            --metadata message=${{ github.event.head_commit.message }} \
            --metadata author=${{ github.event.head_commit.author.name }} \
            --metadata email=${{ github.event.head_commit.author.email }} \
            --metadata timestamp=${{ github.event.head_commit.timestamp }}
